MATERIALI

Curve saldate acciaio inossidabile 300 series

STAINLESS

STEEL

300

SERIES

STAINLESS STEEL
300 SERIES

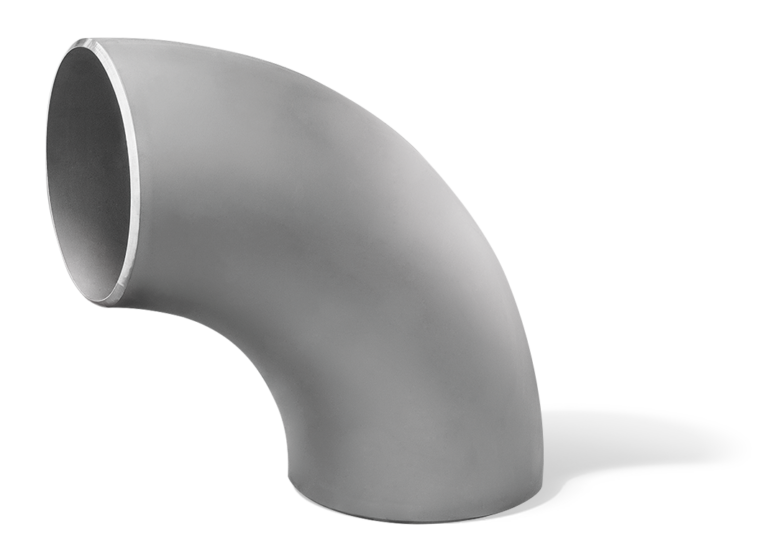

CURVE SALDATE

Gli acciai austenitici serie 300 contengono più dell’8% di nichel e appartengono al gruppo degli acciai inossidabili (inox). Presentano un’ottima combinazione di proprietà meccaniche e resistenza alla corrosione. Grazie a queste caratteristiche, gli acciai austenitici sono diffusi in tutti i campi in cui sono richieste elevate esigenze in termini di resistenza alla corrosione. La struttura austenitica e la relativa duttilità elevata comportano eccezionali caratteristiche di tenacità, anche a basse temperature di utilizzo, nonché una buona saldabilità.

3,0 mm | SCH5S

25,0 mm | SCH100

168,3 mm | 6″

1060,0 mm | 42″

MATERIALI

DENOMINAZIONE	UNS	WERKSTOFF
304	S30400	1.4301
304L	S30403	1.4307
304L	S30403	1.4306
321	S32100	1.4541
321H	S32109	1.4878
347	S34700	1.4550
347H	S34709	1.4961
316	S31600	1.4401
316L	S31603	1.4404
316Ti	S31635	1.4571
317L	S31703	1.4438

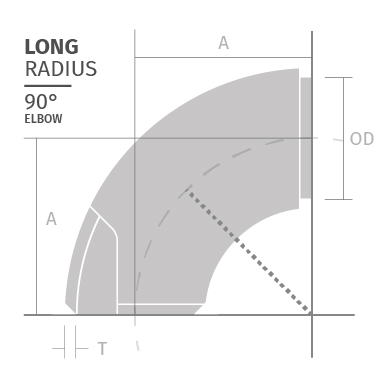

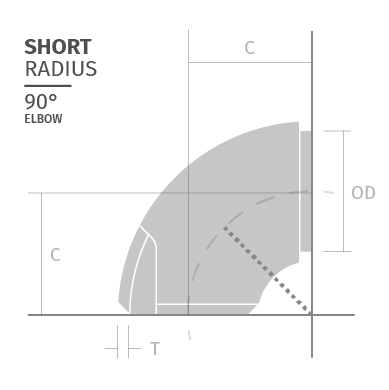

LONG E SHORT
RADIUS

REFERENCE LIST

Ciò che vedi è ciò che puoi ottenere.

Riportiamo alcuni lavori per dimostrare concretamente quello che possiamo realizzare.

Project	Company	Country	Norm	Material	Plant	Year
Eos Project - Realisation phase of biorefinery	UPM	Germany	EN10253-4 Type B	1.4307, 1.4404		2023
ARG Turbokompressor	Ineos Manufacturing Deutschland GmbH	Germany	EN10253-4 Type A, EN10253-4 Type B	1.4571		2023
Project Ethanol Columns including MVRs and CIP Station - Two distillation units	Novo Nordisk A/S	Denmark	EN10253-4 Type A	1.4404		2023
Izmit 3 - Air separation plant	Linde AG	Turkey	EN10253-4 Type A, EN10253-4 Type B	1.4541		2023
NIKE PM 4	Model Group	Germany	EN10253-4 Type A	1.4404		2023
Kemi Bioproduct mill	Metsä Fibre	Finland	EN10253-4 Type A	1.4307, 1.4404, 1.4462		2022
Pluto Train 2 (LNG Train)	Bechtel	Australia	ASTM A403 WP-WX	AISI 304/304L		2022
UPM EOS LEUNA PROJECT (Biorefinery)	UPM Biochemicals	Germany	EN10253-4 Type B	1.4301, 1.4307		2022
Manteinance works of the refinery	Repsol Puertollano	Spain	ASTM A403 WP-WX	AISI 321		2022
C43 (Biofuels plant)	Repsol	Spain	ASTM A403 WP-WX	AISI 321		2022
Ammonium nitrosulphate (ASN) plant	Fertiberia	Spain	ASTM A403 WP-WX	AISI 316/316L		2022
Pyrenees - Polar project	Adisseo, Technip	Spain	ASTM A403 WP-WX	AISI 316/L		2021
LNG Receiving Terminal, Maasvlakte Rotterdam	Gate Terminal B.V.	The Netherlands	ASTM A403 WP-WX	AISI 304/304L		2021
Kallo, propane dehydrogenation (PDH) plant	Borealis	Belgium	ASTM A403 WP-WX	AISI 304/304L		2021
Sarawak	Air liquide	Malaysia	ASTM A403 WP-WX	AISI 347H		2021
GRAP – HC-TAR 2020 (Refinery)	Ruhr Oel GmbH	Germany	EN10253-4 Type A	1.4541, 1.4571		2020
Tyra redevelopment project (Gas field)	Total	Denmark	ASTM A403 WP-WX	AISI 316/L		2020
PM3 - Paper mill	Progroup	Germany	EN10253-3	1.4404		2020
Böhler ESW2020 (special steel plant)	Vöst Alpine	Austria	EN10253-4 Type A	1.4404		2019
Paper mill PM2 - Spremberg	Hamburger Rieger	Germany	EN10253-4 Type A	1.4404		2019
WWTP Chisinau (wastewater treatment plant)	SA Apa Canal Chisinau	Moldaw	EN10253-3	1.4404		2019
ALBI SMR-X (plant for the production of Hydrogen)	Air Liquide Large Industry NV (“ALBI”)	Belgium	ASTM A403 WP-WX	AISI 304/304L		2019
PÖLS PM3 (Paper mill)	Zellstoffwerk Pöls	Austria	EN10253-4 Type A, EN10253-4 Type B	1.4404		2018
Visonta (Wheat processing plant)	Viresol Kft.	Hungary	EN10253-4 Type A	1.4301, 1.4307		2018
ENCE (pulp production plant)	Moncobra SA	Spain	EN10253-4 Type A	1.4301, 1.4307, 1.4404, 1.4462		2018
Obervermunt II (Pumped storage power plant)	Vorarlberger Illwerke	Austria	EN10253-4 Type B	1.4301, 1.4307		2017
Amur (Gas Processing Plant)	Gazprom	Russian Federation	EN10253-4 Type A	1.4541		2017
Danube Refinery Revamp of DMHCK Unit	MOL Hungarian Oil and Gas PLC	Hungary	ASTM A403 WP-WX	AISI 321		2016
Nawara (Gas Pipeline and Gas Treatment Plant)	OMV Group	Tunisia	ASTM A403 WP-WX	AISI 316/316L		2016
Bamboo Project - Yara (Nitric acid plant)	Técnicas Reunidas SA	Norway	EN10253-4 Type A	1.4306, X2CrNi19-11		2016
Bamboo Project - Yara (Nitric acid plant)	Técnicas Reunidas SA	Norway	EN10253-4 Type A	1.4306		2016
Evaporator Station	Agrana	Austria	EN10253-4 Type A	1.4571		2015
Pta (Purified Terephthalic Acid) plant - Expansion Project	Indorama	The Netherlands	ASTM A403 WP-WX	AISI 304/304L, UNS S31254		2015
Pta (Purified Terephthalic Acid) plant - Expansion Project	Indorama	The Netherlands	ASTM A403 WP-WX	AISI 316/316L, UNS S31254		2015
CTTPT76 (Offshore Oil Platform)	Petrobras – Technip	Turkey	ASTM A403 WP-WX	AISI 316/316L		2015
Etileno XXI Project (Petrochemical plant)	Braskem Idesa S.A.P.I.	Mexico	ASTM A403 WP-WX	AISI 304/304L		2014
Hydrocyclone	OMV Group	Austria	EN10253-4	1.4571		2014
Secunda 65P (Gasification plants)	Linde Group/Sasol Group	South Africa	ASTM A403 WP-WX	AISI 304H		2013
Stainless Steel Fittings for LNG plants	ENAGAS	Spain	ASTM A403 WP-WX	AISI 304L		2011
Petrobrazi refinery - Dav 2 Revamp Omv Petrom s.a.	Foster Wheeler – ITALIANA S.r.l.	Romania	ASTM A403 WP-WX	AISI 316/L		2011
Queensland LNG Train	Bechtel International Inc.	Australia	ASTM A403 WP-WX	AISI 304L		2011
RCC Reactors	FPCC-Refinery	Taiwan	ASTM A403 WP-WX	AISI 304H		2010
NEVINNOMYSSK AZOT - Chemical plant	Casale SA	Russian Federation	EN10253-4 Type A	1.4401, 1.4404		2010
Butane Deasphalting -SDA / Rose Project Petrochemical	GLSA / LOTOS / Technip	Poland	ASTM A403 WP-WX	AISI 317L		2009

NORME

ASTM A403 - ASTM B366 - ASTM A815

EN10253-3 - EN10253-4 TYPE A/B

La produzione segue rigorosamente le specifiche internazionali EN e ASTM – ASME.

Era Fittings, per ogni curva saldata in acciaio inox prodotta, emette certificati che rispettano le qualifiche richieste dalla committenza. Tutte le lavorazioni di saldatura sono eseguite da personale qualificato nel totale rispetto delle normative. Le curve saldate vengono inoltre testate direttamente in azienda attraverso gli esami ai raggi X, ad ultrasuoni, ai liquidi penetranti e PMI in base alla norma di riferimento o a specifiche richieste del cliente.
