Stainless steels welded elbows 300 series

STAINLESS

STEEL

300

SERIES

STAINLESS STEEL
300 SERIES

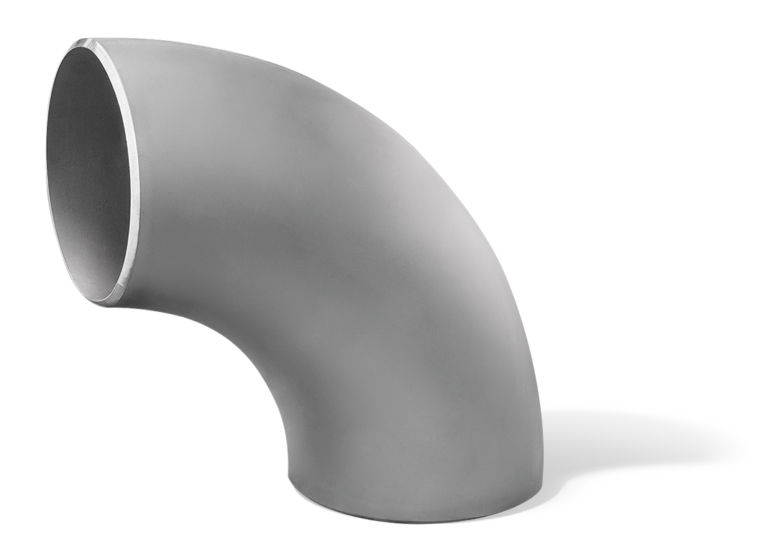

WELDED ELBOWS

The austenitic stainless steels 300 series contain more than 8% of nickel and belong to the group of stainless steels (inox). They have an excellent combination of mechanical properties and corrosion resistance. The austenitic structure and the relative ductility, result in exceptional toughness characteristics, even at low operating temperatures, as well as good weldability.

from

up to

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

from

up to

C3_

168,3 mm | 6″

1060,0 mm | 42″

MATERIAL GRADES

DENOMINATIONUNSWERKSTOFF
304S304001.4301
304LS304031.4307
304LS304031.4306
321S321001.4541
321HS321091.4878
347S347001.4550
347HS347091.4961
316S316001.4401
316LS316031.4404
316TiS316351.4571
317LS317031.4438

LONG AND SHORT
RADIUS SHAPE

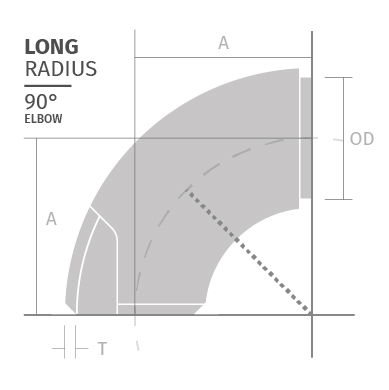

Stainless steels welded elbows 300 series Era Fittings LONG-RADIUS

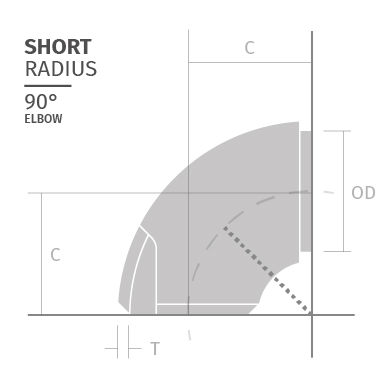

Stainless steels welded elbows 300 series Era Fittings SHORT-RADIUS

REFERENCE LIST

What you see is what you can get.

Here are some of the projects where we have been involved, to concretely demonstrate what we can achieve.

Project Company Country Norm Material Plant Year
Eos Project - Realisation phase of biorefinery UPM Germany EN10253-4 Type B 1.4307, 1.4404 2023
ARG Turbokompressor Ineos Manufacturing Deutschland GmbH Germany EN10253-4 Type A, EN10253-4 Type B 1.4571 2023
Project Ethanol Columns including MVRs and CIP Station - Two distillation units Novo Nordisk A/S Denmark EN10253-4 Type A 1.4404 2023
Izmit 3 - Air separation plant Linde AG Turkey EN10253-4 Type A, EN10253-4 Type B 1.4541 2023
NIKE PM 4 Model Group Germany EN10253-4 Type A 1.4404 2023
Kemi Bioproduct mill Metsä Fibre Finland EN10253-4 Type A 1.4307, 1.4404, 1.4462 2022
Pluto Train 2 (LNG Train) Bechtel Australia ASTM A403 WP-WX AISI 304/304L 2022
UPM EOS LEUNA PROJECT (Biorefinery) UPM Biochemicals Germany EN10253-4 Type B 1.4301, 1.4307 2022
Manteinance works of the refinery Repsol Puertollano Spain ASTM A403 WP-WX AISI 321 2022
C43 (Biofuels plant) Repsol Spain ASTM A403 WP-WX AISI 321 2022
Ammonium nitrosulphate (ASN) plant Fertiberia Spain ASTM A403 WP-WX AISI 316/316L 2022
Pyrenees - Polar project Adisseo, Technip Spain ASTM A403 WP-WX AISI 316/L 2021
LNG Receiving Terminal, Maasvlakte Rotterdam Gate Terminal B.V. The Netherlands ASTM A403 WP-WX AISI 304/304L 2021
Kallo, propane dehydrogenation (PDH) plant Borealis Belgium ASTM A403 WP-WX AISI 304/304L 2021
Sarawak Air Liquide Malaysia ASTM A403 WP-WX AISI 347H 2021
Tyra redevelopment project (Gas field) Total Denmark ASTM A403 WP-WX AISI 316/L 2020
PM3 - Paper mill Progroup Germany EN10253-3 1.4404 2020
GRAP – HC-TAR 2020 (Refinery) Ruhr Oel GmbH Germany EN10253-4 Type A 1.4541, 1.4571 2020
ALBI SMR-X (plant for the production of Hydrogen) Air Liquide Large Industry NV (“ALBI”) Belgium ASTM A403 WP-WX AISI 304/304L 2019
Böhler ESW2020 (Special steel plant) Vöst Alpine Austria EN10253-4 Type A 1.4404 2019
Paper mill PM2 - Spremberg Hamburger Rieger Germany EN10253-4 Type A 1.4404 2019
WWTP Chisinau (wastewater treatment plant) SA Apa Canal Chisinau   Moldaw EN10253-3 1.4404 2019
ENCE (pulp production plant) Moncobra SA Spain EN10253-4 Type A 1.4301, 1.4307, 1.4404, 1.4462 2018
Visonta (Wheat processing plant) Viresol Kft. Hungary EN10253-4 Type A 1.4301, 1.4307 2018
PÖLS PM3 (Paper mill) Zellstoffwerk Pöls Austria EN10253-4 Type A, EN10253-4 Type B 1.4404 2018
Amur (Gas Processing Plant) Gazprom Russian Federation EN10253-4 Type A 1.4541 2017
Obervermunt II (Pumped storage power plant) Vorarlberger Illwerke Austria EN10253-4 Type B 1.4301, 1.4307 2017
Nawara (Gas Pipeline and Gas Treatment Plant) OMV Group Tunisia ASTM A403 WP-WX AISI 316/316L 2016
Danube Refinery Revamp of DMHCK Unit MOL Hungarian Oil and Gas PLC Hungary ASTM A403 WP-WX AISI 321 2016
Bamboo Project - Yara (Nitric acid plant) Técnicas Reunidas SA Norway EN10253-4 Type A 1.4306 2016
CTTPT76 (Offshore Oil Platform) Petrobras – Technip Turkey ASTM A403 WP-WX AISI 316/316L 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 316/316L, UNS S31254 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 304/304L, UNS S31254 2015
Evaporator Station Agrana Austria EN10253-4 Type A 1.4571 2015
Hydrocyclone OMV Group Austria EN10253-4 1.4571 2014
Etileno XXI Project (Petrochemical plant) Braskem Idesa S.A.P.I. Mexico ASTM A403 WP-WX AISI 304/304L 2014
Secunda 65P (Gasification plants) Linde Group/Sasol Group South Africa ASTM A403 WP-WX AISI 304H 2013
Queensland LNG Train Bechtel International Inc. Australia ASTM A403 WP-WX AISI 304L 2011
Petrobrazi refinery - Dav 2 Revamp Omv Petrom s.a. Foster Wheeler – ITALIANA S.r.l. Romania ASTM A403 WP-WX AISI 316/L 2011
Stainless Steel Fittings for LNG plants ENAGAS Spain ASTM A403 WP-WX AISI 304L 2011
NEVINNOMYSSK AZOT - Chemical plant Casale SA Russian Federation EN10253-4 Type A 1.4401, 1.4404 2010
RCC Reactors FPCC-Refinery Taiwan ASTM A403 WP-WX AISI 304H 2010
Butane Deasphalting -SDA / Rose Project Petrochemical GLSA / LOTOS / Technip Poland ASTM A403 WP-WX AISI 317L 2009

The production of elbows strictly follows the international specifications according to EN and ASTM-ASME.

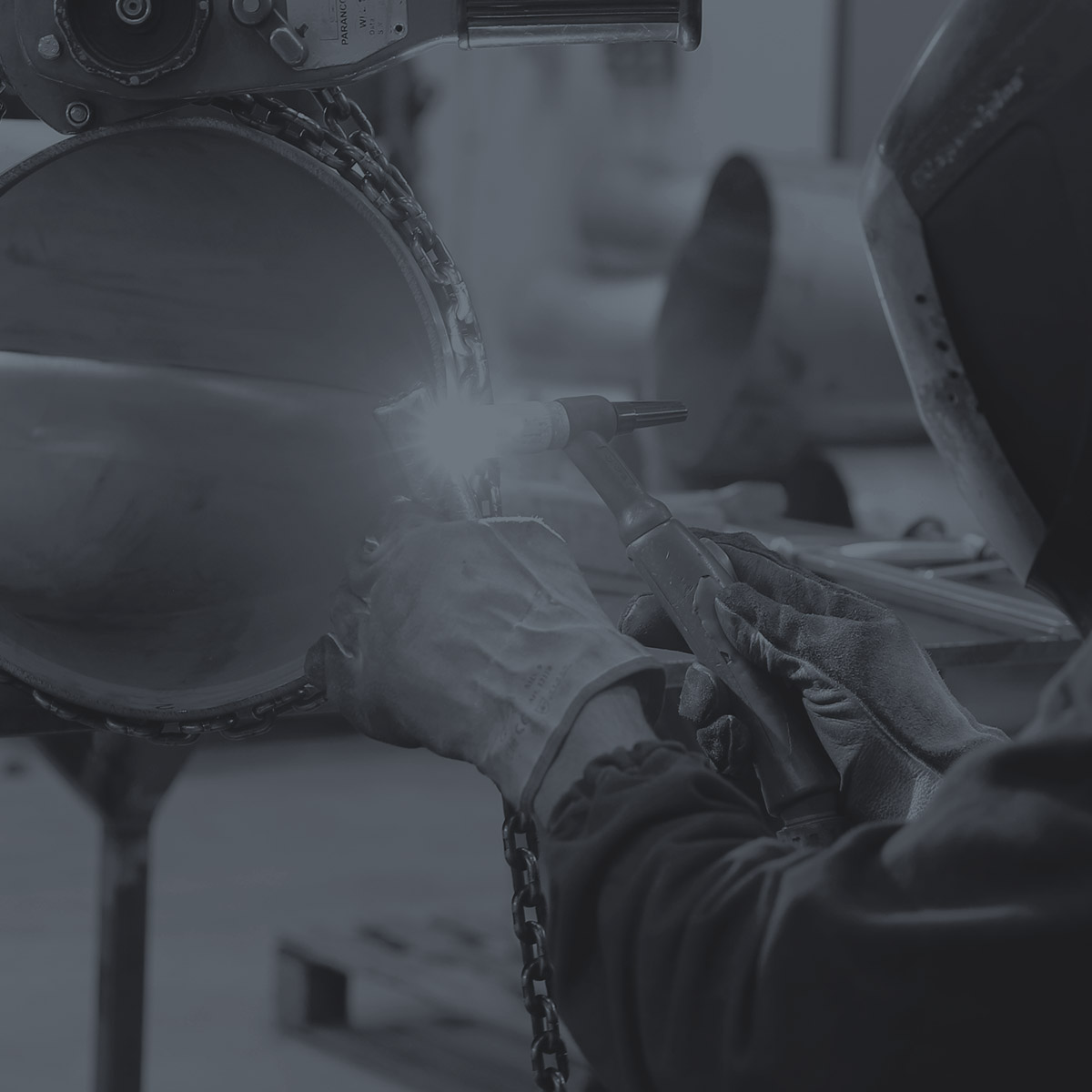

Era Fittings, for each elbow produced, issues certificates that meet the qualifications required by the client. All welding operations are performed by qualified personnel in full compliance with the norms. The elbows will also be tested with X-rays, UT, and Penetrants Liquids according to the norm and customer requests.
