EN10253-3
EN 10253-4 TYPE A/B
Nello stabilimento Era Fittings vengono prodotte curve saldate nel rispetto delle normative europee EN.
In particolar modo la norma EN10253-3 specifica le condizioni tecniche di fornitura delle curve in acciaio inossidabile ed austenitico ferritico (duplex) senza requisiti specifici di controllo, mente la norma EN10253-4 specifica le condizioni tecniche di fornitura di curve negli stessi materiali destinate ad impieghi a pressione e resistenti alla corrosione a temperatura ambiente, a bassa temperatura o a temperature elevate, per cui si eseguono dei controlli aggiuntivi e vengono rilasciati certificati di conformità.

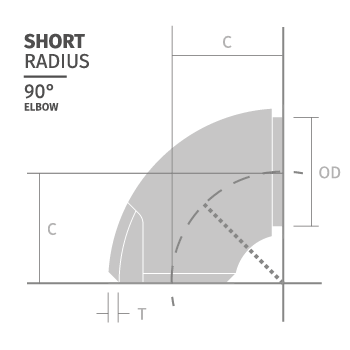

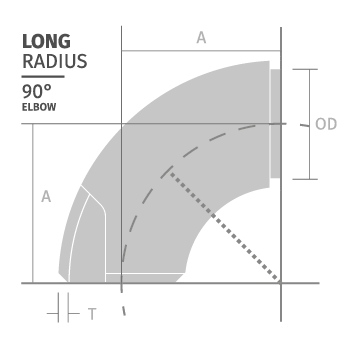

LONG E SHORT RADIUS
da
a
3,0 mm | SCH5S
25,0 mm | SCH100
da
a
168,3 mm | 6″
1060,0 mm | 42″
TABELLA DIMENSIONALE
DN | DIAMETRO D mm | SPESSORE T mm | RAGGIO 3D mm | RAGGIO 2D mm |
---|---|---|---|---|
150 | 168,3 | 3,0 - 20,0 | 229,0 | 152,0 |
200 | 219,1 | 3,0 - 25,0 | 305,0 | 203,0 |
250 | 273,0 | 3,0 - 25,0 | 381,0 | 254,0 |
300 | 323,9 | 3,0 - 25,0 | 457,0 | 305,0 |
350 | 355,6 | 3,0 - 22,0 | 533,0 | 356,0 |
400 | 406,4 | 3,0 - 22,0 | 610,0 | 406,0 |
450 | 457,0 | 3,0 - 22,0 | 686,0 | 457,0 |
500 | 508,00 | 3,0 - 22,0 | 762,0 | 508,0 |
600 | 610,0 | 3,0 - 22,0 | 914,0 | 610,0 |
650 | 660,0 | 4,0 - 15,0 | 991,0 | 660,0 |
700 | 711,0 | 4,0 - 15,0 | 1067,0 | 711,0 |
750 | 762,0 | 4,0 - 15,0 | 1143,0 | 762,0 |
800 | 813,0 | 4,0 - 15,0 | 1219,0 | 813,0 |
850 | 864,0 | 6,0 - 15,0 | 1295,0 | 864,0 |
900 | 914,0 | 6,0 - 15,0 | 1372,0 | 914,0 |
950 | 965,0 | 6,0 - 15,0 | 1448,0 | 965,0 |
1000 | 1016,0 | 6,0 - 15,0 | 1524,0 | 1016,0 |
1050 | 1067,0 | 6,0 - 15,0 | 1600,00 | 1050,0 |
