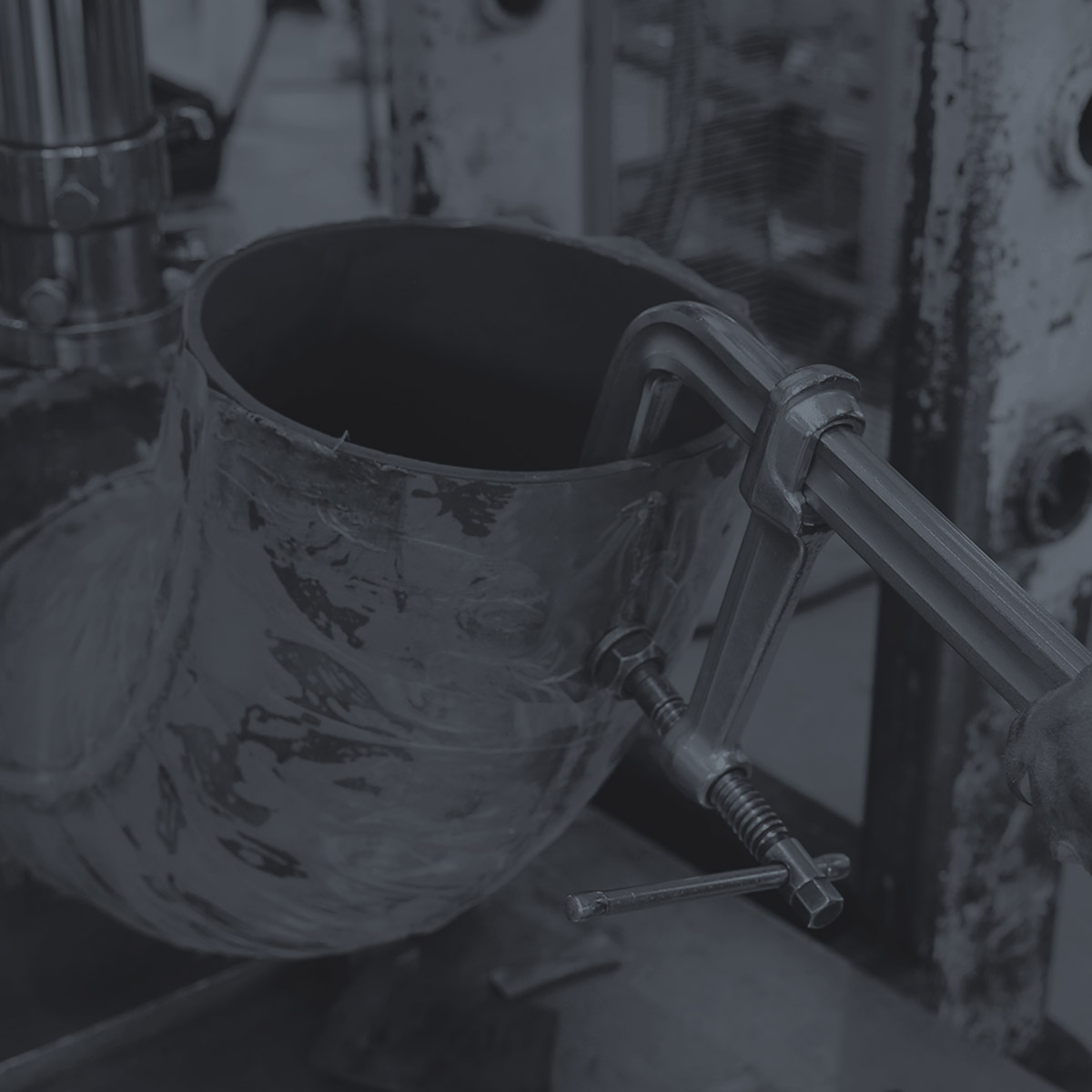

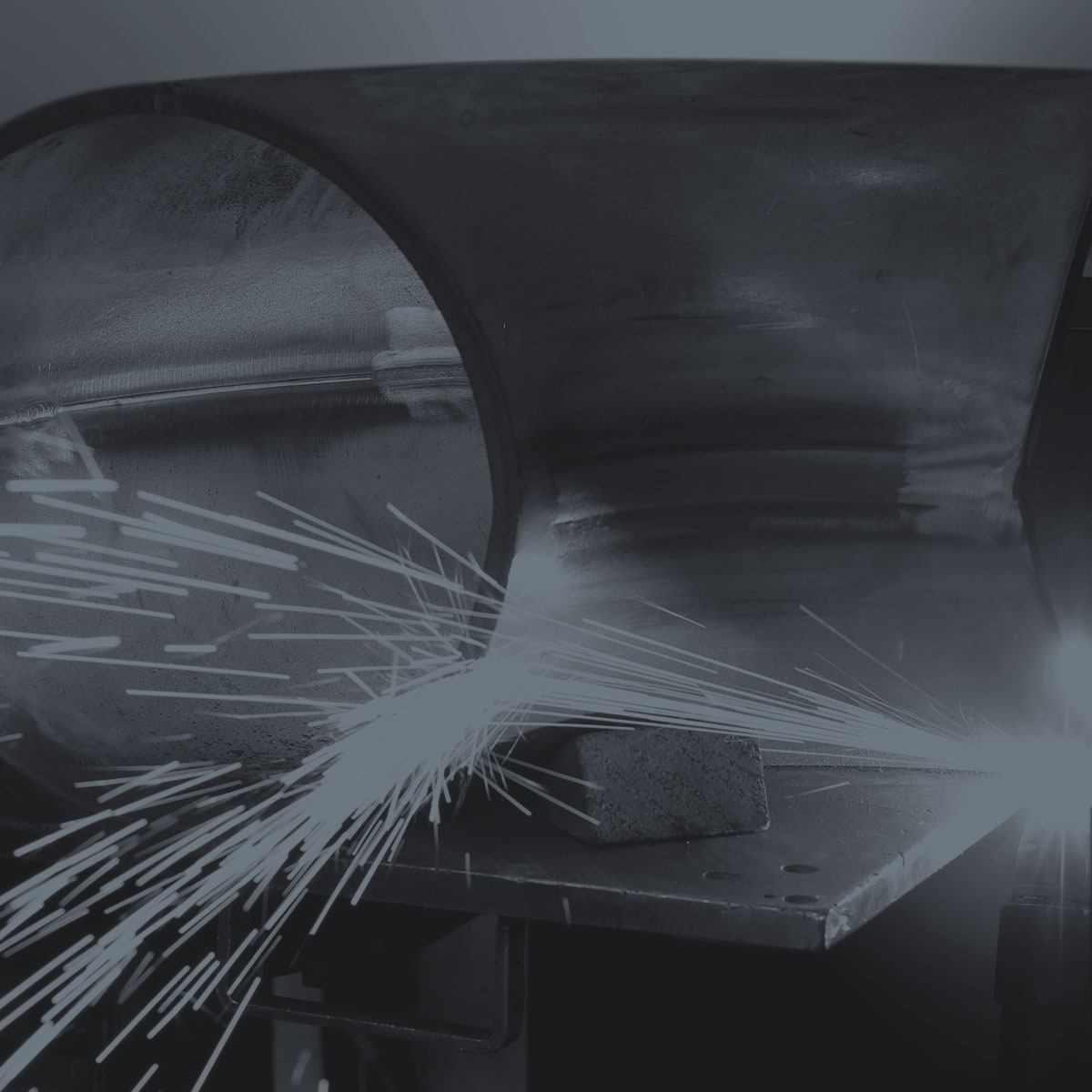

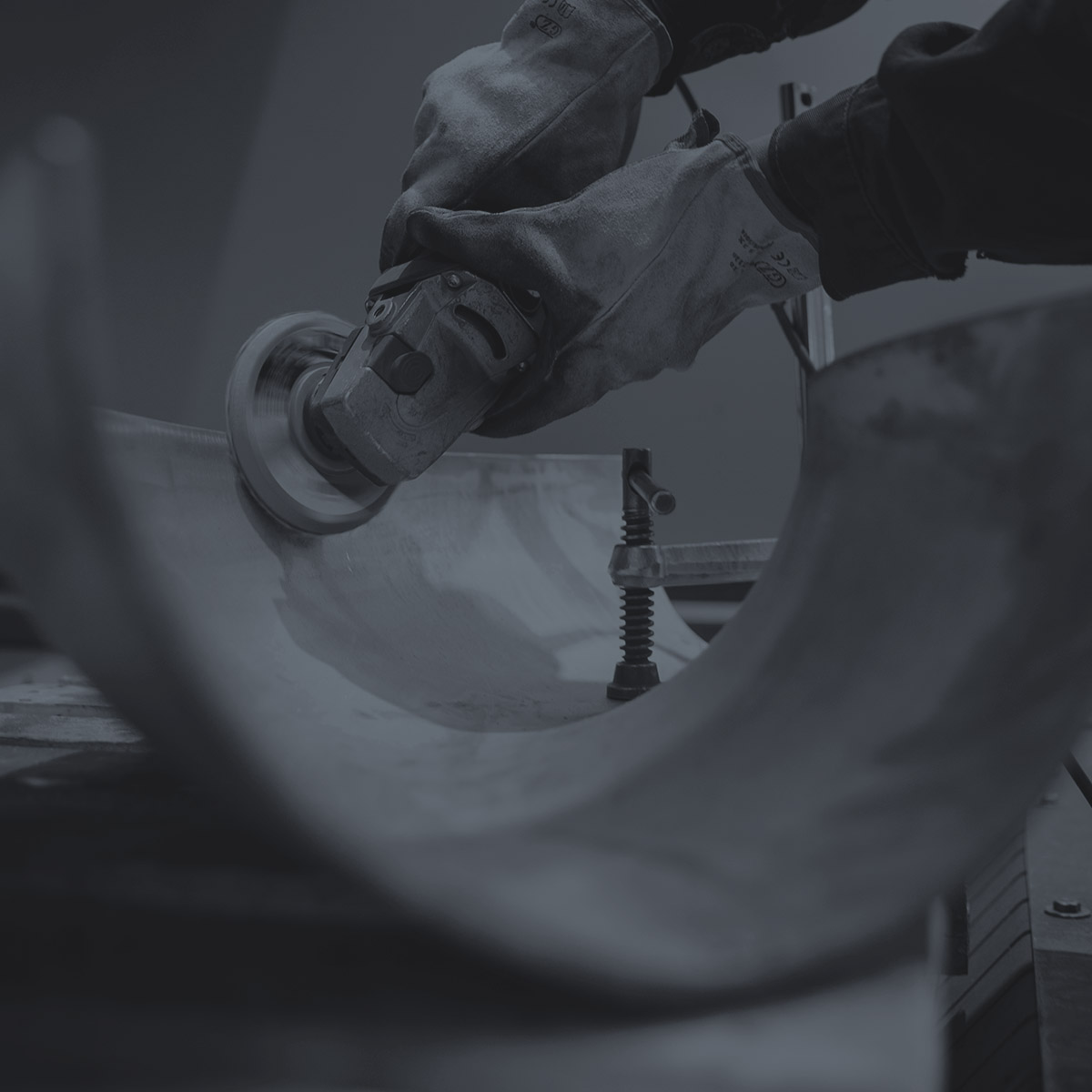

In Era Fittings realizziamo curve saldate secondo ASTM (American Society for Testing and Materials)/ASME (American Society of Mechanical Engineers). Nello specifico facciamo riferimento agli standard ASTM/ASME A/SA403, ASTM/ASME A/SA815, ASTM/ASME B/SB366, rispettando i controlli richiesti e fornendo la documentazione prevista. Per garantire maggior controllo ed efficienza sul processo produttivo eseguiamo internamente i controlli non distruttivi (NDT). Tutte le altre verifiche sono affidate a laboratori esterni certificati UNI EN ISO/IEC 17025.

LONG E SHORT RADIUS

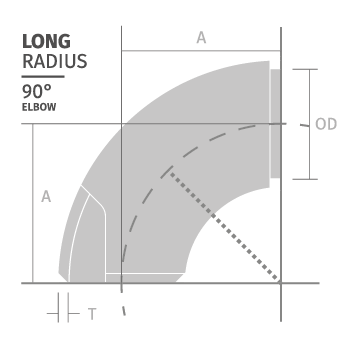

Norme ASTM A403 ASTM B366 ASTM A815 Era Fittings LONG-RADIUS

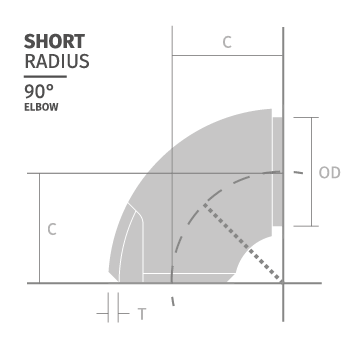

Norme ASTM A403 ASTM B366 ASTM A815 Era Fittings SHORT-RADIUS
  • thickness SPESSORE

da

a

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

  • dimensions DIAMETRO

da

a

C3_

168,3 mm | 6″

1060,0 mm | 42″

TABELLA DIMENSIONALE

Nominal Pipe Size in.LONG RADIUS
center to end
m/m
A		SHORT RADIUS
center to end
m/m
A		SCH
STD
wall thickness m/m
T		SCH
XS
wall thickness m/m
T		SCH
5S
wall thickness m/m
T		SCH
10
wall thickness m/m
T		SCH
10S
wall thickness m/m
T		SCH
20
wall thickness m/m
T		SCH
30
wall thickness m/m
T		SCH
40
wall thickness m/m
T		SCH
40S
wall thickness m/m
T		SCH
60
wall thickness m/m
T		SCH
80
wall thickness m/m
T		SCH
80S
wall thickness m/m
T		SCH
100
wall thickness m/m
T		SCH
120
wall thickness m/m
T
6"2291527,1110,972,773,43,4-6,357,117,11-10,9710,97-14,27
8"3052038,1812,702,773,763,766,357,048,188,1810,3112,7012,7015,0918,26
10"3812549,2712,703,44,194,196,357,809,279,2712,7015,0912,7018,2621,44
12"4573059,5212,703,964,574,576,358,3810,319,5214,2717,4812,7021,4425,40
14"5333569,5212,703,966,354,777,929,5211,139,5215,0919,0512,7023,83-
16"6104069,5212,704,196,354,777,929,5212,709,5216,6621,4412,7026,19-
18"6864579,5212,704,196,354,777,9211,1214,279,5219,0523,8312,70--
20"7625089,5212,704,776,355,549,5212,7015,099,5220,6226,1912,70--
22"8385599,5212,704,776,355,549,5212,7015,879,5222,22-12,70--
24"9146109,5212,705,546,356,359,5214,2717,489,5224,61-12,70--
26"9916609,5212,70-7,92-12,70--9,52--12,70--
28"10677119,5212,70-7,92-12,7015,87-9,52--12,70--
30"11437629,5212,706,357,927,9212,7015,87-9,52--12,70--
32"12198139,5212,70-7,92-12,7015,87-------
34"12958649,5212,70-7,92-12,7015,87-------
36"13729149,5212,70-7,92-12,7015,87-------
38"14489659,5212,70------------
40"152410169,5212,70------------
42"160010509,5212,70------------

REFERENCES

Riportiamo alcuni lavori per dimostrare concretamente quello che possiamo realizzare.

Per consultare la lista completa cliccare qui:

All references
Project Company Country Norm Material Plant Year
Green Refinery Eni S.p.a. Italy ASTM B366 WP-WX N06625 2021
Pyrenees - Polar project Adisseo, Technip Spain ASTM A403 WP-WX AISI 316/L 2021
LNG Receiving Terminal, Maasvlakte Rotterdam Gate Terminal B.V. The Netherlands ASTM A403 WP-WX AISI 304/304L 2021
Kallo, propane dehydrogenation (PDH) plant Borealis Belgium ASTM A403 WP-WX AISI 304/304L 2021
Sarawak Air liquide Malaysia ASTM A403 WP-WX AISI 347H 2021
Tyra redevelopment project (Gas field) Total Denmark ASTM A815 WP-WX UNS S31803, UNS S32750 2020
Tyra redevelopment project (Gas field) Total Denmark ASTM A403 WP-WX AISI 316/L 2020
ALBI SMR-X (plant for the production of Hydrogen) Air Liquide Large Industry NV (“ALBI”) Belgium ASTM A403 WP-WX AISI 304/304L 2019
TAL-OR2-PNG-03-OC-02 /9839910 (modernization of Talara's refinery) Tecnicas Reunidas Peru ASTM A815 WP-WX UNS S32760 2019
 MSC Musica (cruise ship) Compania Naviera Musica Panama ASTM A403 WP-WX UNS S31254 2019
G2 PROJECT/GELA Refinery ENI S.p.a. Italy ASTM B366 N06625 2017
Sako (Desalination Plant) MES Iran ASTM A815 WP-WX UNS S32750 2017
Obervermunt II (Pumped storage power plant) Vorarlberger Illwerke Austria EN10253-4 Type B 1.4301, 1.4307 2017
Danube Refinery Revamp of DMHCK Unit MOL Hungarian Oil and Gas PLC Hungary ASTM A403 WP-WX AISI 321 2016
Nawara (Gas Pipeline and Gas Treatment Plant) OMV Group Tunisia ASTM A403 WP-WX AISI 316/316L 2016
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 304/304L, UNS S31254 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 316/316L, UNS S31254 2015
CTTPT76 (Offshore Oil Platform) Petrobras – Technip Turkey ASTM A815 WP-WX UNS S31803 2015
CTTPT76 (Offshore Oil Platform) Petrobras – Technip Turkey ASTM A403 WP-WX AISI 316/316L 2015
Etileno XXI Project (Petrochemical plant) Braskem Idesa S.A.P.I. Mexico ASTM A403 WP-WX AISI 304/304L 2014
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A815 WP-WX UNS S31803, UNS S32205 2014
Darsait (Wastewater Treatment Plant) Cadagua Oman ASTM A815 WP-WX UNS S32750 2013
Secunda 65P (Gasification plants) Linde Group/Sasol Group South Africa ASTM A403 WP-WX AISI 304H 2013
Stainless Steel Fittings for LNG plants ENAGAS Spain ASTM A403 WP-WX AISI 304L 2011
Petrobrazi refinery - Dav 2 Revamp Omv Petrom s.a. Foster Wheeler – ITALIANA S.r.l. Romania ASTM A403 WP-WX AISI 316/L 2011
Queensland LNG Train Bechtel International Inc. Australia ASTM A403 WP-WX AISI 304L 2011
RCC Reactors FPCC-Refinery Taiwan ASTM A403 WP-WX AISI 304H 2010
AKZO - Nobel Rotterdam Botlek plan AKZO Engineering The Netherlands ASTM A403 WP-WX UNS N08904, UNS N08904L 2010
Butane Deasphalting -SDA / Rose Project Petrochemical GLSA / LOTOS / Technip Poland ASTM A403 WP-WX AISI 317L 2009
Hsinta - Power Station KC Cottrell Taiwan ASTM A403 WP-WX UNS S31254 2009
