REFERENZNORMEN

Referenznormen ASTM A403 ASTM B366 ASTM A815

ASTM A403

ASTM B366-ASTM A815

Bei Era Fittings produzieren wir geschweißte Bögen nach den ASTM (American Society for Testing and Materials)/ASME (American Society of Mechanical Engineers) Standards. Insbesondere beachten wir die Normen ASTM/ASME A/SA403, ASTM/ASME A/SA815, ASTM/ASME B/SB366. Dabei halten wir die geforderten Kontrollen ein und stellen die erforderliche Dokumentation bereit. Um eine größere Kontrolle und Effizienz des Produktionsprozesses zu gewährleisten, führen wir intern zerstörungsfreie Prüfungen (NDT) durch. Alle anderen Prüfungen werden externen, nach UNI EN ISO/IEC 17025 zertifizierten Labors anvertraut.

LONG UND SHORT RADIUS

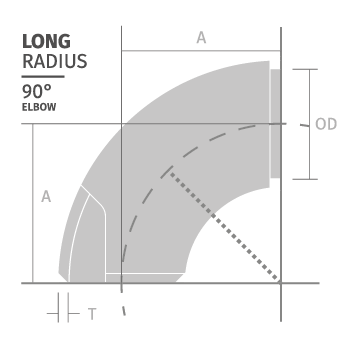

Normen ASTM A403 ASTM B366 ASTM A815 LONG-RADIUS

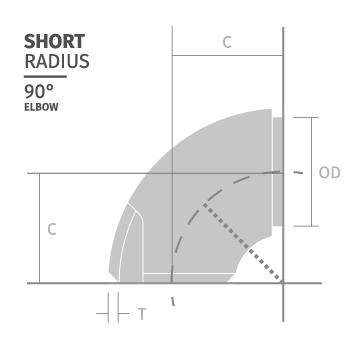

Normen ASTM A403 ASTM B366 ASTM A815 SHORT-RADIUS
  • thickness DICKE

von

bis

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

  • dimensions ABMESSUNGEN

von

bis

C3_

168,3 mm | 6″

1060,0 mm | 42″

ABMESSUNGEN

Rohr-Nennweite in.LANGER RADIUS
radius
m/m
A		KURZER RADIUS
radius
m/m
A		SCH
STD
Wanddicke m/m
T		SCH
XS
Wanddicke m/m
T		SCH
5S
Wanddicke m/m
T		SCH
10
Wanddicke m/m
T		SCH
10S
Wanddicke m/m
T		SCH
20
Wanddicke m/m
T		SCH
30
Wanddicke m/m
T		SCH
40
Wanddicke m/m
T		SCH
40S
Wanddicke m/m
T		SCH
60
Wanddicke m/m
T		SCH
80
Wanddicke m/m
T		SCH
80S
Wanddicke m/m
T		SCH
100
Wanddicke m/m
T		SCH
120
Wanddicke m/m
T
6"2291527,1110,972,773,43,4-6,357,117,11-10,9710,97-14,27
8"3052038,1812,702,773,763,766,357,048,188,1810,3112,7012,7015,0918,26
10"3812549,2712,703,44,194,196,357,809,279,2712,7015,0912,7018,2621,44
12"4573059,5212,703,964,574,576,358,3810,319,5214,2717,4812,7021,4425,40
14"5333569,5212,703,966,354,777,929,5211,139,5215,0919,0512,7023,83-
16"6104069,5212,704,196,354,777,929,5212,709,5216,6621,4412,7026,19-
18"6864579,5212,704,196,354,777,9211,1214,279,5219,0523,8312,70--
20"7625089,5212,704,776,355,549,5212,7015,099,5220,6226,1912,70--
22"8385599,5212,704,776,355,549,5212,7015,879,5222,22-12,70--
24"9146109,5212,705,546,356,359,5214,2717,489,5224,61-12,70--
26"9916609,5212,70-7,92-12,70--9,52--12,70--
28"10677119,5212,70-7,92-12,7015,87-9,52--12,70--
30"11437629,5212,706,357,927,9212,7015,87-9,52--12,70--
32"12198139,5212,70-7,92-12,7015,87-------
34"12958649,5212,70-7,92-12,7015,87-------
36"13729149,5212,70-7,92-12,7015,87-------
38"14489659,5212,70------------
40"152410169,5212,70------------
42"160010509,5212,70------------

REFERENZLISTE

Wir berichten über einige Arbeiten, um konkret zu demonstrieren, was wir verwirklichen können.

Klicken Sie hier, um die vollständige Liste zu visualisieren:

alle Referenzen
Project Company Country Norm Material Plant Year
Upgrading EL Hamd station to an integrated oil treatment facility The General Petroleum CO. Egypt ASTM A815 WP-WX UNS S32760 2022
Green Refinery Eni S.p.a. Italy ASTM B366 WP-WX N06625 2021
Pyrenees - Polar project Adisseo, Technip Spain ASTM A403 WP-WX AISI 316/L 2021
LNG Receiving Terminal, Maasvlakte Rotterdam Gate Terminal B.V. The Netherlands ASTM A403 WP-WX AISI 304/304L 2021
Kallo, propane dehydrogenation (PDH) plant Borealis Belgium ASTM A403 WP-WX AISI 304/304L 2021
Sarawak Air Liquide Malaysia ASTM A403 WP-WX AISI 347H 2021
Tyra redevelopment project (Gas field) Total Denmark ASTM A815 WP-WX UNS S31803, UNS S32750 2020
Tyra redevelopment project (Gas field) Total Denmark ASTM A403 WP-WX AISI 316/L 2020
ALBI SMR-X (plant for the production of Hydrogen) Air Liquide Large Industry NV („ALBI“) Belgium ASTM A403 WP-WX AISI 304/304L 2019
TAL-OR2-PNG-03-OC-02 /9839910 (modernization of Talara's refinery) Tecnicas Reunidas Peru ASTM A815 WP-WX UNS S32760 2019
 MSC Musica (cruise ship) Compania Naviera Musica Panama ASTM A403 WP-WX UNS S31254 2019
G2 PROJECT/GELA Refinery ENI S.p.a. Italy ASTM B366 N06625 2017
Sako (Desalination Plant) MES Iran ASTM A815 WP-WX UNS S32750 2017
Obervermunt II (Pumped storage power plant) Vorarlberger Illwerke Austria EN10253-4 Type B 1.4301, 1.4307 2017
Danube Refinery Revamp of DMHCK Unit MOL Hungarian Oil and Gas PLC Hungary ASTM A403 WP-WX AISI 321 2016
Nawara (Gas Pipeline and Gas Treatment Plant) OMV Group Tunisia ASTM A403 WP-WX AISI 316/316L 2016
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 304/304L, UNS S31254 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 316/316L, UNS S31254 2015
CTTPT76 (Offshore Oil Platform) Petrobras – Technip Turkey ASTM A815 WP-WX UNS S31803 2015
CTTPT76 (Offshore Oil Platform) Petrobras – Technip Turkey ASTM A403 WP-WX AISI 316/316L 2015
Etileno XXI Project (Petrochemical plant) Braskem Idesa S.A.P.I. Mexico ASTM A403 WP-WX AISI 304/304L 2014
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A815 WP-WX UNS S31803, UNS S32205 2014
Darsait (Wastewater Treatment Plant) Cadagua Oman ASTM A815 WP-WX UNS S32750 2013
Secunda 65P (Gasification plants) Linde Group/Sasol Group South Africa ASTM A403 WP-WX AISI 304H 2013
Stainless Steel Fittings for LNG plants ENAGAS Spain ASTM A403 WP-WX AISI 304L 2011
Petrobrazi refinery - Dav 2 Revamp Omv Petrom s.a. Foster Wheeler – ITALIANA S.r.l. Romania ASTM A403 WP-WX AISI 316/L 2011
Queensland LNG Train Bechtel International Inc. Australia ASTM A403 WP-WX AISI 304L 2011
RCC Reactors FPCC-Refinery Taiwan ASTM A403 WP-WX AISI 304H 2010
AKZO - Nobel Rotterdam Botlek plan AKZO Engineering The Netherlands ASTM A403 WP-WX UNS N08904, UNS N08904L 2010
Butane Deasphalting -SDA / Rose Project Petrochemical GLSA / LOTOS / Technip Poland ASTM A403 WP-WX AISI 317L 2009
Hsinta - Power Station KC Cottrell Taiwan ASTM A403 WP-WX UNS S31254 2009
