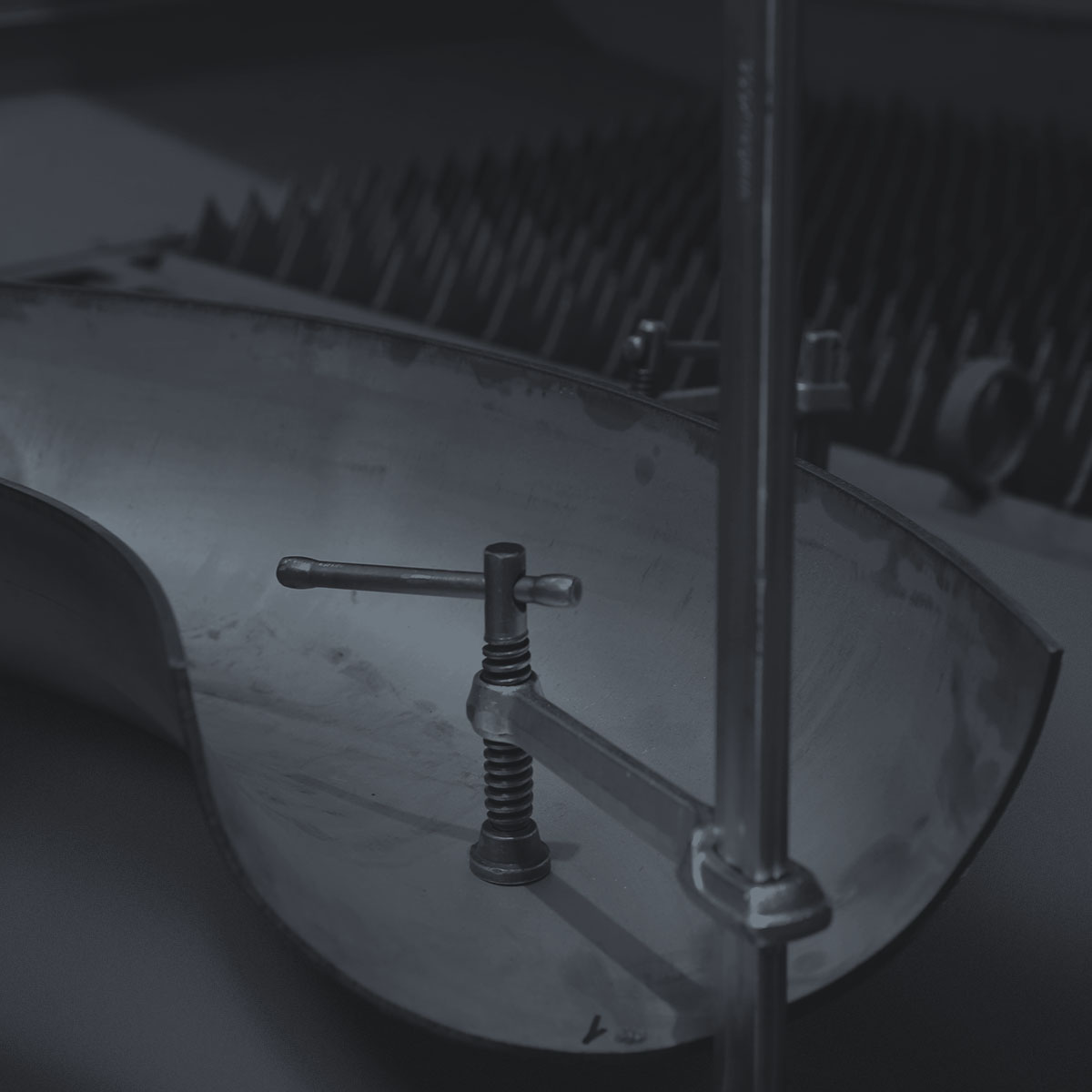

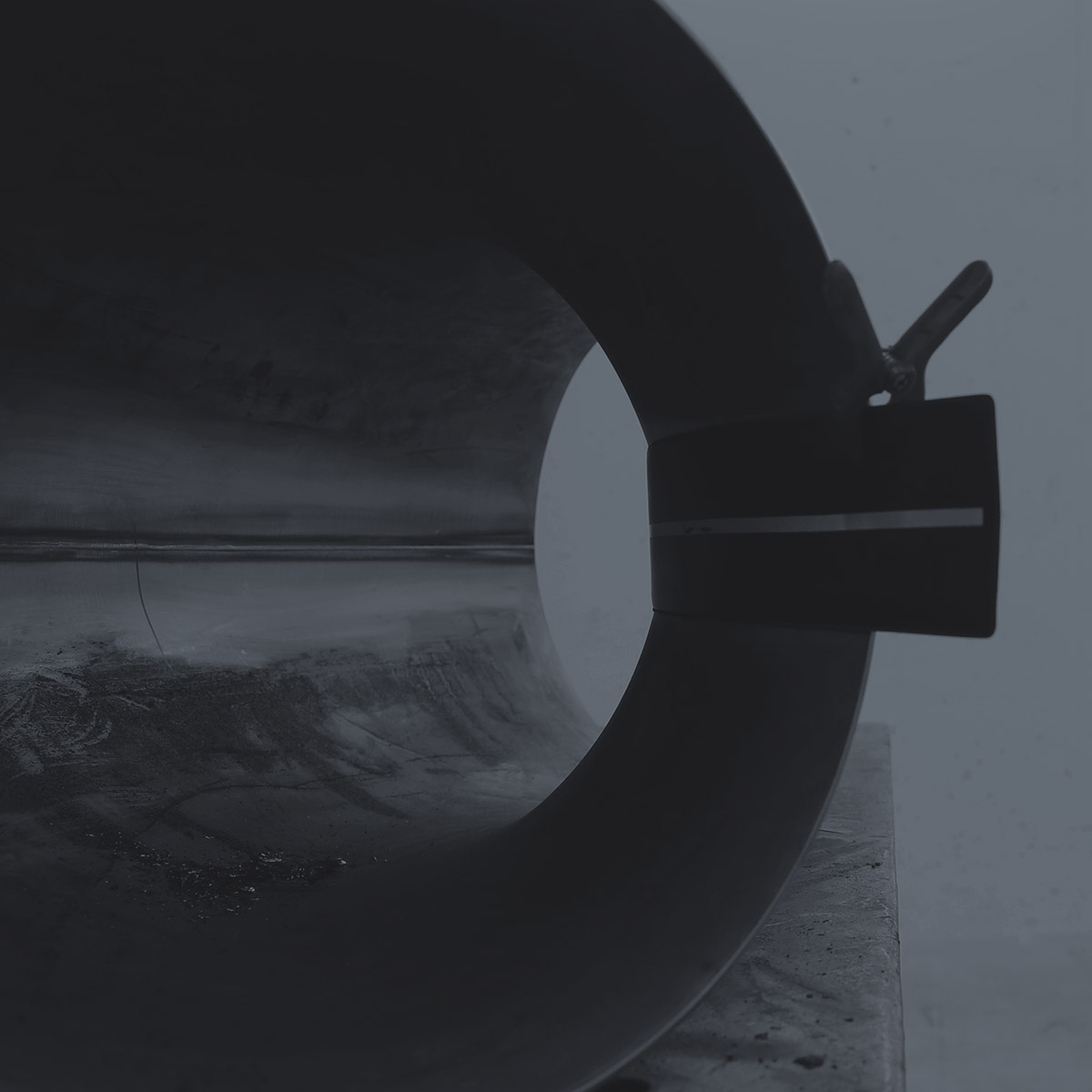

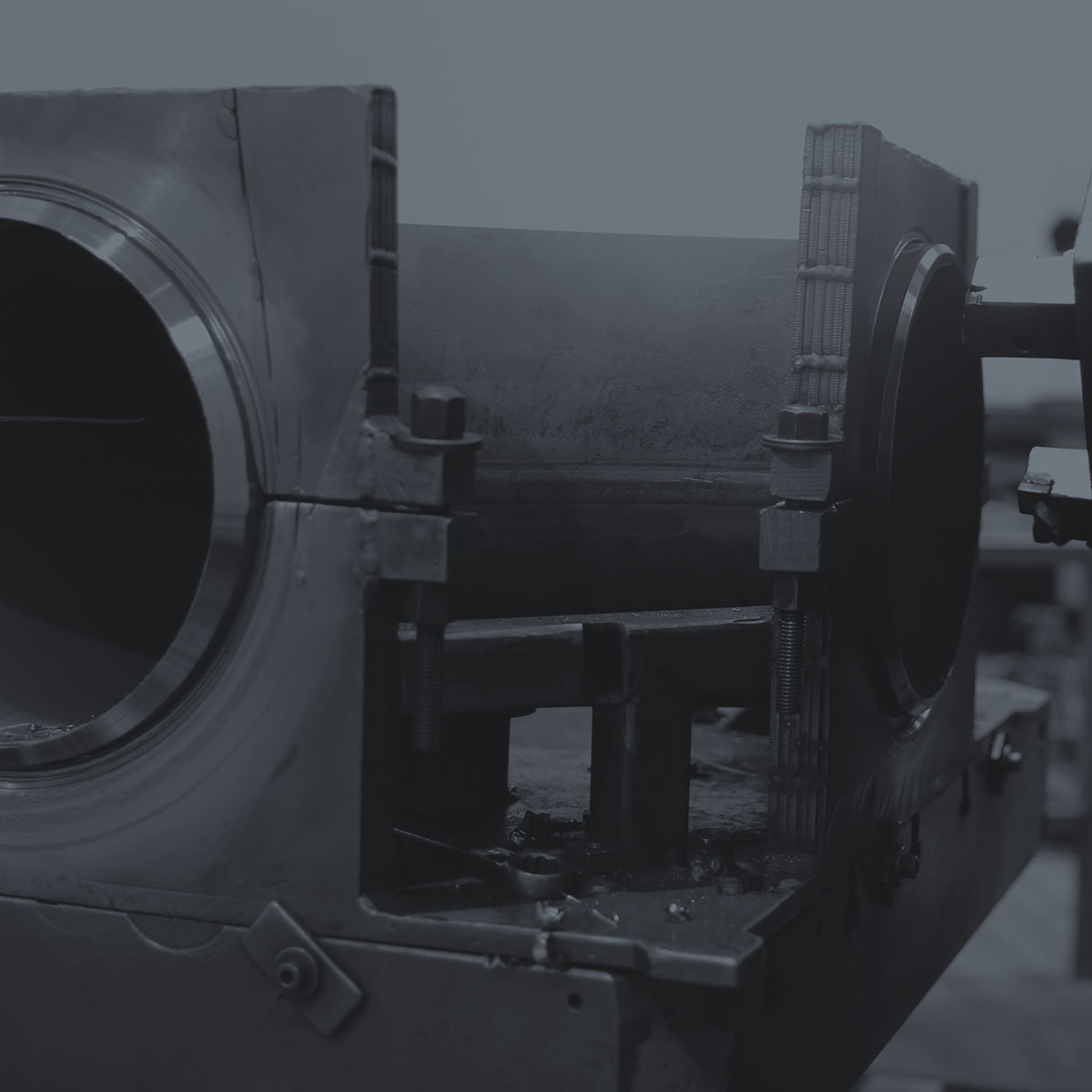

In Era Fittings we produce welded elbows according to the European norms EN.
The norm EN10253-3 specifies the technical conditions for the supply of elbows in stainless steel and austenitic ferritic steel (duplex) without specific inspection requirements, while the EN10253-4 standard specifies the technical conditions for the supply of elbows in the same material grades intended for pressure purposes and resistant to corrosion at room, low or high temperature. For this standard additional tests are carried out and related certificates of conformity are issued.

LONG AND SHORT RADIUS SHAPE

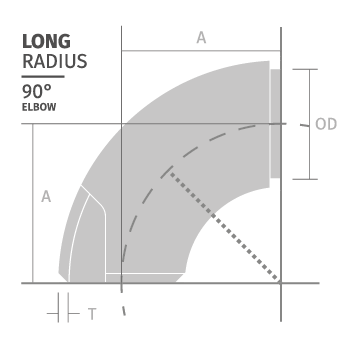

Norms EN10253-3 EN 10253-4 TYPE A TYPE B LONG-RADIUS

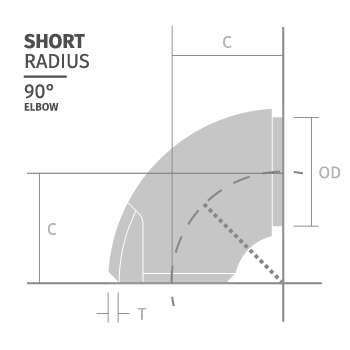

Norms EN10253-3 EN 10253-4 TYPE A TYPE B SHORT-RADIUS
  • thickness THICKNESS

from

up to

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

  • dimensions DIMENSIONS

from

up to

C3_

168,3 mm | 6″

1060,0 mm | 42″

DIMENSION TABLE

DNDIAMETER D mmTHICKNESS T mmRADIUS 3D mmRADIUS 2D mm
150168,33,0 - 20,0229,0152,0
200219,13,0 - 25,0305,0203,0
250273,03,0 - 25,0381,0254,0
300323,93,0 - 25,0457,0305,0
350355,63,0 - 22,0533,0356,0
400406,43,0 - 22,0610,0406,0
450457,03,0 - 22,0686,0457,0
500508,003,0 - 22,0762,0508,0
600610,03,0 - 22,0914,0610,0
650660,04,0 - 15,0991,0660,0
700711,04,0 - 15,01067,0711,0
750762,04,0 - 15,01143,0762,0
800813,04,0 - 15,01219,0813,0
850864,06,0 - 15,01295,0864,0
900914,06,0 - 15,01372,0914,0
950965,06,0 - 15,01448,0965,0
10001016,06,0 - 15,01524,01016,0
10501067,06,0 - 15,01600,001050,0
