SUPER AUSTENITIC ALLOYS

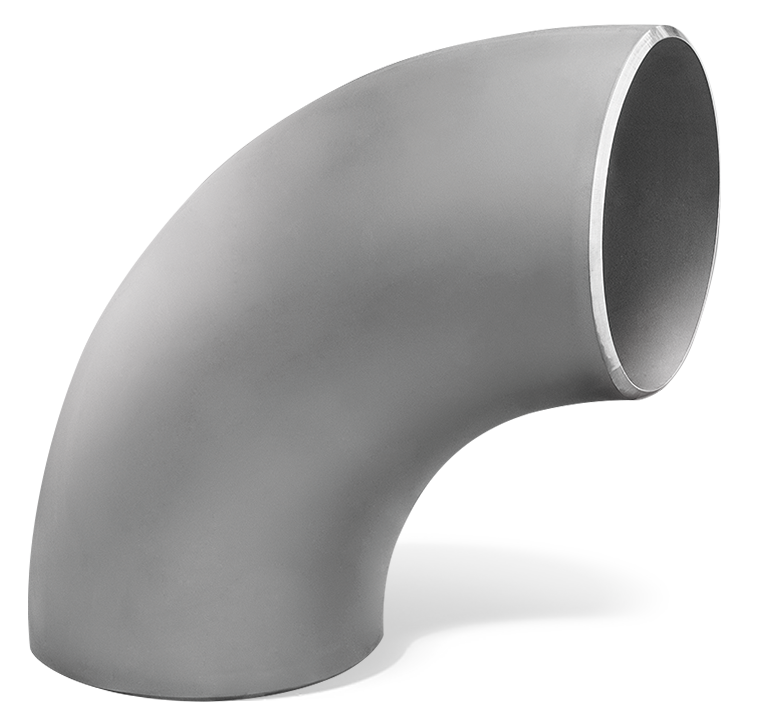

WELDED ELBOWS

Super austenitic alloys have been developed to meet severe corrosion specifications. Thanks to their high molybdenum content (>6%), nitrogen additions and higher nickel content, these alloys provide better resistance to stress corrosion cracking than the 300 series. Super austenitic steels are non-magnetic and have good weldability and formability. They are used on the chemical and petrol-chemical industry, pulp and paper, desalination plants, hydrometallurgy, pharmaceutical industry and heat exchangers.

from

up to

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

from

up to

C3_

168,3 mm | 6″

1060,0 mm | 42″

MATERIAL GRADES

DENOMINATIONUNSWERKSTOFF
904LN089041.4539
6 MoN089261.4529
254 SmoS312541.4547
253 MaS308151.4893

LONG AND SHORT
RADIUS SHAPE

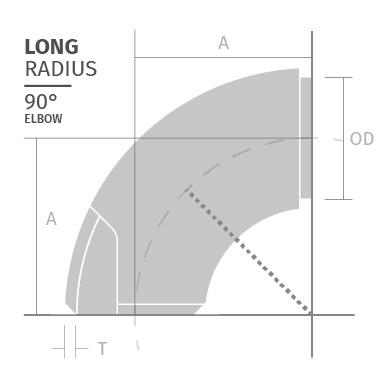

Stainless steels welded elbows corrosion resistant Era Fittings LONG-RADIUS

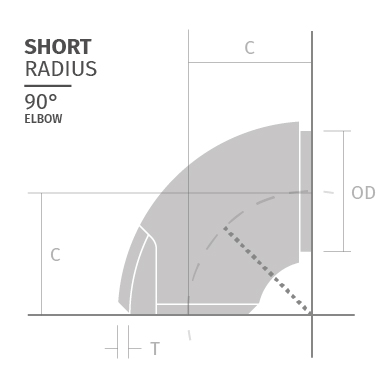

Stainless steels welded elbows corrosion resistant Era Fittings SHORT-RADIUS

REFERENCE LIST

What you see is what you can get.

Here are some of the projects where we have been involved, to concretely demonstrate what we can achieve.

Project Company Country Norm Material Plant Year
 MSC Musica (cruise ship) Compania Naviera Musica Panama ASTM A403 WP-WX UNS S31254 2019
Stena Transporter (Ship) Stena Line The Netherlands EN10253-4 Type A UNS S31254 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 304/304L, UNS S31254 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A403 WP-WX AISI 316/316L, UNS S31254 2015
AKZO - Nobel Rotterdam Botlek plan AKZO Engineering The Netherlands ASTM B366 WP-WX UNS N08904, UNS N08904L 2010
Hsinta - Power Station KC Cottrell Taiwan ASTM A403 WP-WX UNS S31254 2009

The production of elbows strictly follows the international specifications according to EN and ASTM-ASME.

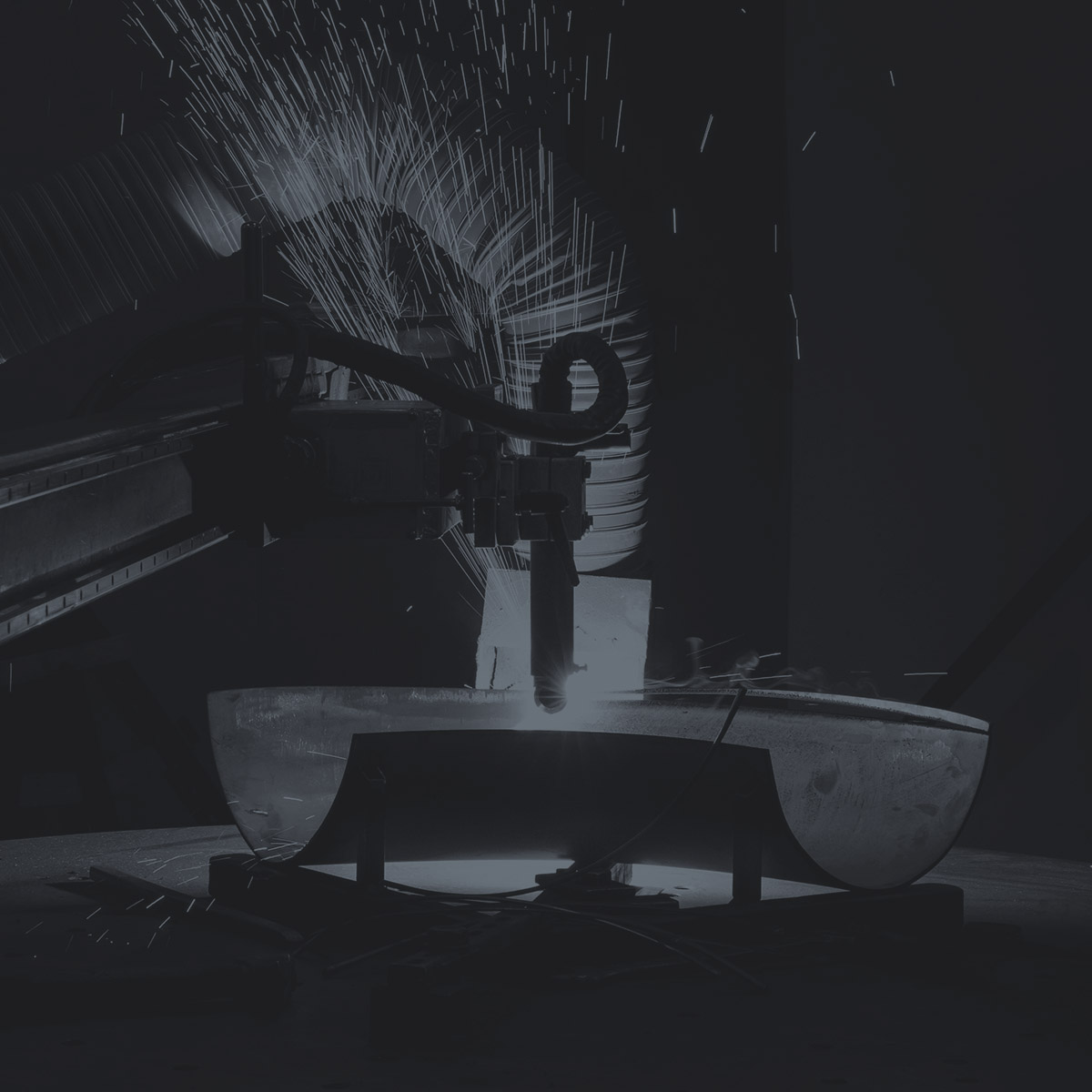

Era Fittings, for each elbow produced, issues certificates that meet the qualifications required by the client. All welding operations are performed by qualified personnel in full compliance with the norms. The elbows will also be tested with X-rays, UT, and Penetrants Liquids according to the norm and customer requests.
