Materials Welded elbows in Duplex and Superduplex Era Fittings

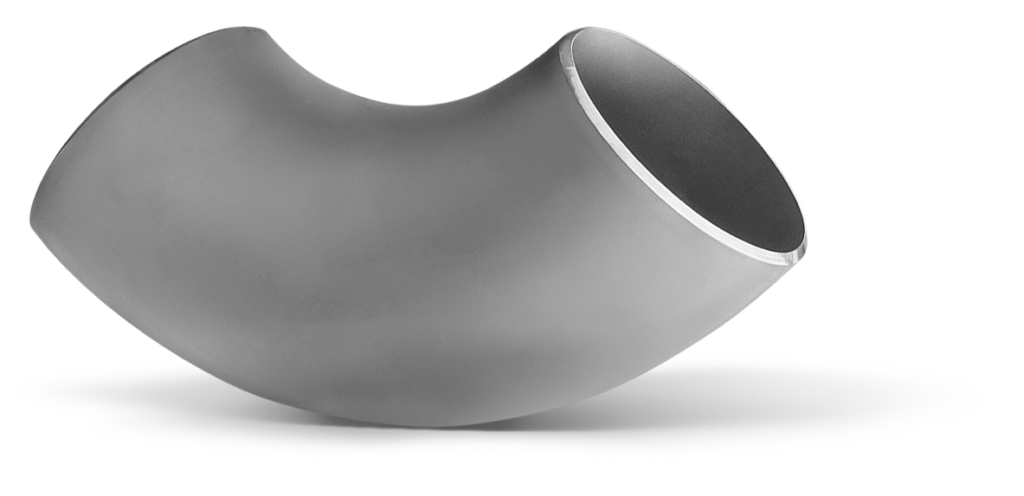

WELDED ELBOWS IN DUPLEX AND SUPERDUPLEX

DUPLEX

SUPER

DUPLEX

DUPLEX - SUPERDUPLEX

WELDED ELBOWS

Duplex steels are biphasic austenitic-ferritic stainless steels with a mixed crystalline grain structure of austenite and ferrite (approximately 50% austenite and 50% ferrite), while Super Duplex are high-performance duplex steels with a high content of chromium nickel and molybdenum.

These steels are characterized by good mechanical strength both at break and yield, excellent resistance to corrosion, excellent ductility and weldability. They are used in the petrochemical industry, where acids and chlorides are involved, in the Oil & Gas industry and in very corrosive marine environments, where materials with a great resistance to different types of stress and forces are required.

from

up to

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

from

up to

C3_

168,3 mm | 6″

1060,0 mm | 42″

MATERIAL GRADES

DENOMINATIONUNSWERKSTOFF
2205 DuplexS318031.4462
2205 DuplexS322051.4462
2507 SuperduplexS327501.4410
SuperduplexS327601.4501

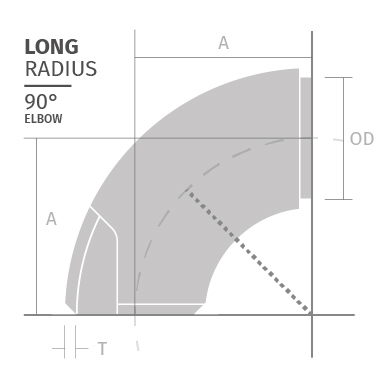

LONG AND SHORT
RADIUS SHAPE

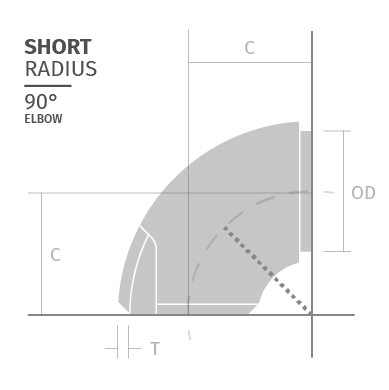

Welded elbows in Duplex and Superduplex Era Fittings SHORT-RADIUS

REFERENCE LIST

What you see is what you can get.

Here are some of the projects where we have been involved, to concretely demonstrate what we can achieve.

Project Company Country Norm Material Plant Year
Tyra redevelopment project (Gas field) Total Denmark ASTM A815 WP-WX UNS S31803, UNS S32750 2020
TAL-OR2-PNG-03-OC-02 /9839910 (modernization of Talara's refinery) Tecnicas Reunidas Peru ASTM A815 WP-WX UNS S32760 2019
ENCE (pulp production plant) Moncobra SA Spain EN10253-4 Type A 1.4301, 1.4307, 1.4404, 1.4462 2018
Sako (Desalination Plant) MES Iran ASTM A815 WP-WX UNS S32750 2017
CTTPT76 (Offshore Oil Platform) Petrobras – Technip Turkey ASTM A815 WP-WX UNS S31803 2015
Pta (Purified Terephthalic Acid) plant - Expansion Project Indorama The Netherlands ASTM A815 WP-WX UNS S31803, UNS S32205 2014
Darsait (Wastewater Treatment Plant) Cadagua Oman ASTM A815 WP-WX UNS S32750 2013
Electrabel (Coal fired power plant) Tractebel Engineering – GDF SVEZ The Netherlands DIN 2605-1 1.4462 2011

The production of elbows strictly follows the international specifications according to EN and ASTM-ASME.

Era Fittings, for each elbow produced, issues certificates that meet the qualifications required by the client. All welding operations are performed by qualified personnel in full compliance with the norms. The elbows will also be tested with X-rays, UT, and Penetrants Liquids according to the norm and customer requests.
