NICKEL

ALLOYS

NICKEL ALLOYS

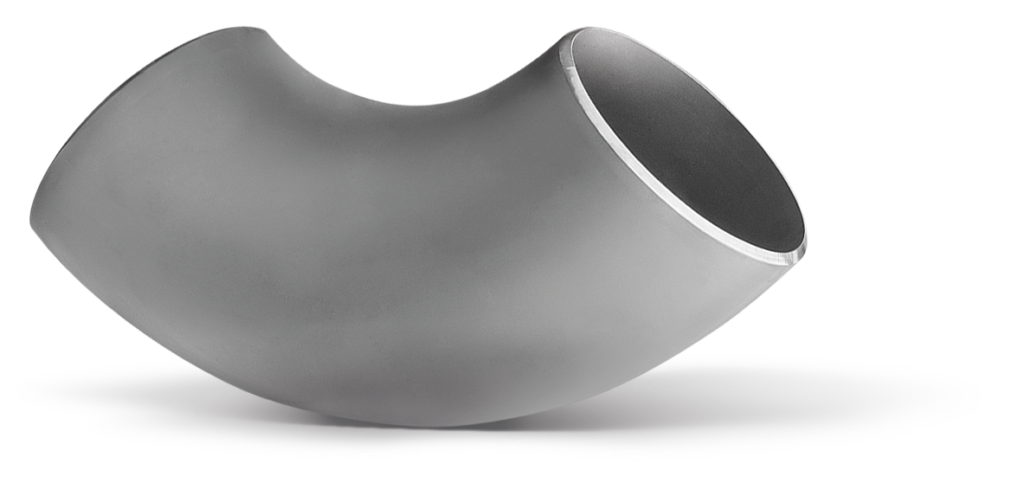

WELDED ELBOWS

Nickel alloys have nickel as balancing metal. They can be alloyed with iron, chromium and molybdenum and are used at the high end of the corrosion scale, for example in the most aggressive parts of flue-gas desulfurization plants and other demanding applications. Nickel alloys present high corrosion resistance properties under severe conditions. These grades are mainly used for the Oil & Gas, chemical and power sectors.

from

up to

C3_

3,0 mm | SCH5S

25,0 mm | SCH100

from

up to

C3_

168,3 mm | 6″

1060,0 mm | 42″

MATERIAL GRADES

DENOMINATIONUNSWERKSTOFF
Alloy 28N080281.4563
Alloy 31N080311.4562
Alloy 400N044002.4360
Alloy 600N066002.4816
Alloy 601N066012.4851
Alloy 625N066252.4856
Alloy 800/800HN088101.4958
Alloy 800HTN088111.4959
Alloy 825N088252.4858
Alloy C22Alloy C222.4602
Alloy 59N060592.4605
Alloy C276N102762.4819

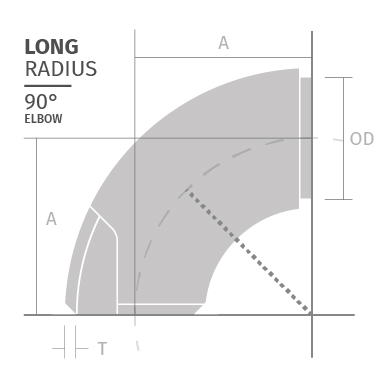

LONG AND SHORT
RADIUS SHAPE

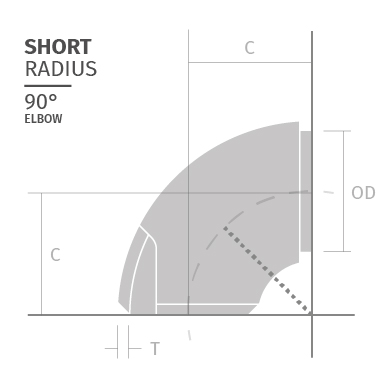

Stainless steels welded elbows high corrosion resistance Era Fittings SHORT-RADIUS

REFERENCE LIST

What you see is what you can get.

Here are some of the projects where we have been involved, to concretely demonstrate what we can achieve.

Project Company Country Norm Material Plant Year
G2 PROJECT/GELA Refinery ENI S.p.a. Italy ASTM B366 N06625 2017

The production of elbows strictly follows the international specifications according to EN and ASTM-ASME.

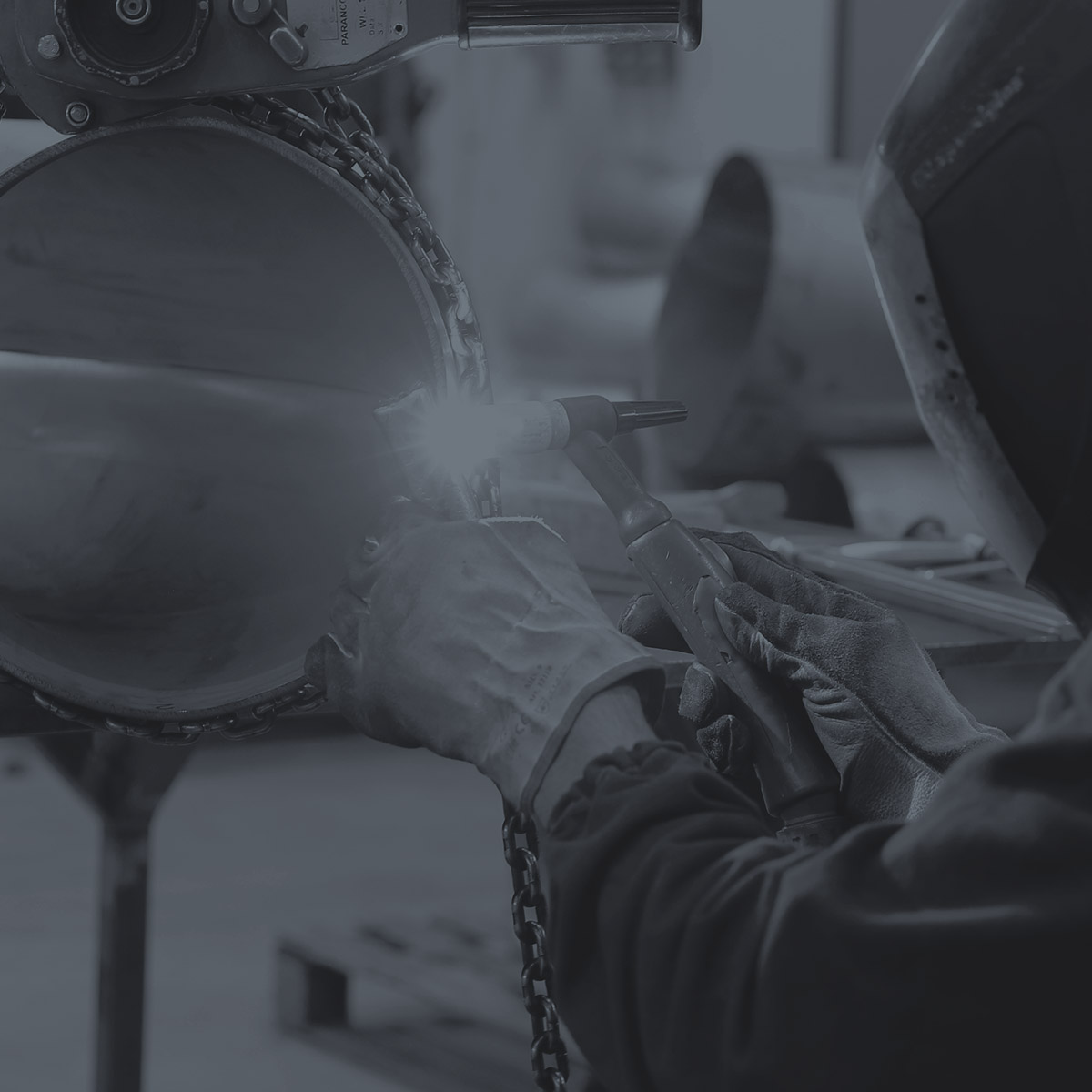

Era Fittings, for each elbow produced, issues certificates that meet the qualifications required by the client. All welding operations are performed by qualified personnel in full compliance with the norms. The elbows will also be tested with X-rays, UT, and Penetrants Liquids according to the norm and customer requests.
